300-400T/H Granite/Basalt Aggregates Production Line

Time : 2023-11-24

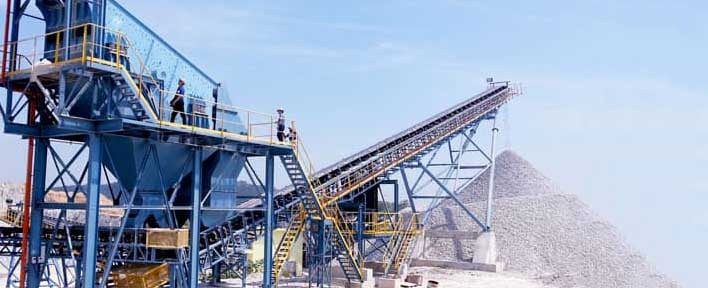

300-400T/H Granite/Basalt Aggregates Production Line

This system is applied for the processing and crushing of hard materials like granite and basalt with the production capacity of 300t/h. The process flow is vibrating feeder – jaw crusher – cone crusher – vibrating screen – sand washer.

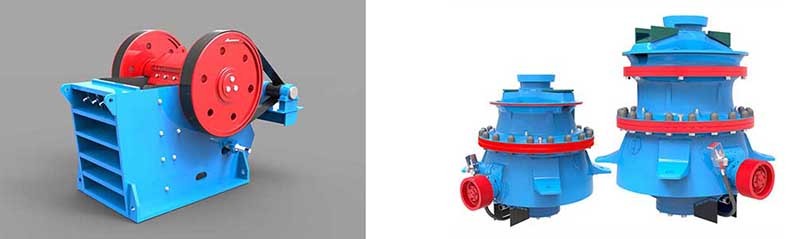

JC series jaw crusher GPY cone crusher

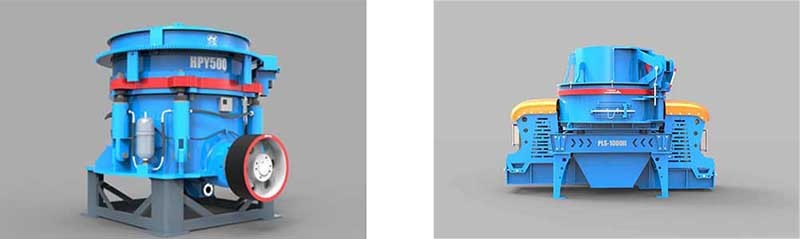

HPY cone crusher Sand making machine

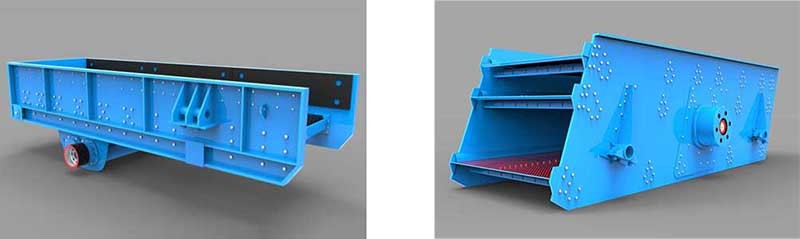

Grizzly Feeder Vibrating Screen

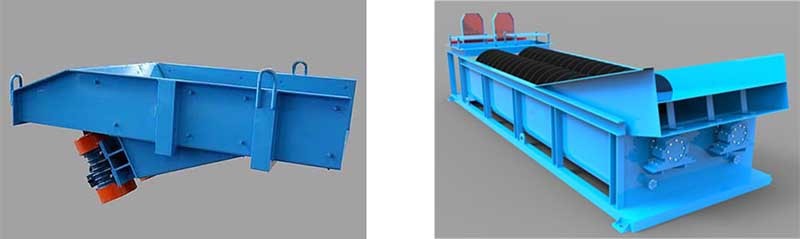

Vibrating Screen Sand Washer

300t/h - Granite (Basalt) Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	ZSW600×130	pc	1	30	30	220-560	8270
P1	Jaw Crusher	JC110	pc	1	110	110	240-590
G2	Vibrating Feeder	ZG300	pc	2	2×1.5	6	-300
G3	Vibrating Feeder	ZG300	pc	1	2×1.5	3	-300
P2	Cone Crusher	GPY200S	pc	1	160	160	225-345	16000
P3	Cone Crusher	HPY400	pc	1	315	315	105-615	32000
S1	Vibrating Screen	3YKR2773	pc	1	55	55	150-1100	18031
XL1	Sand Washer	XL762	pc	1	15	15	-75	5225	wet method
C1	Iron Separator		pc	1
G4	Vibrating Feeder	ZG150	pc	1	2×0.75	1.5	-150
P4	Sand Making Machine	PLS-1000	pc	1	320-500	320-500	200-585	16500
S2	Vibrating Screen	2YK2460	pc	1	37	37	120-880	9076
XL2	Sand Washer	XL1118	pc	1	22	22	-175	12703	wet method
C2	Iron Separator		pc	1

400t/h - Granite (Basalt) Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	ZSW600×130	pc	1	18.5	18.5	220-560	8270
P1	Jaw Crusher	JC125	pc	1	160	160	360-800
G2	Vibrating Feeder	ZG300	pc	2	2×1.5	6	-300
G3	Vibrating Feeder	ZG400	pc	1	2x2.0	4	-400
P2	Cone Crusher	GPY300S	pc	1	250	250	350-430	23600
P3	Cone Crusher	HPY500	pc	1	400	400	135-770	42500
S1	Vibrating Screen	3YKR2160	pc	2	45	90	115-820	10652
XL1	Sand Washer	XL914	pc	1	15	15	-100	6370	wet method
C1	Iron Separator		pc	1
G4	Vibrating Feeder	ZG200	pc	1	2×0.75	1.5	-200
P4	Sand Making Machine	PLS-1200	pc	1	500-600	500-600	300-715	19690
S2	Vibrating Screen	2YK2475	pc	1	45	45	180-900	13924
XL2	Sand Washer	XL1118	pc	1	22	22	-175	12703	wet method
C2	Iron Separator		pc	1

Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.
