500-600T/H Limestone/Dolomite Aggregates Production Line

Time : 27/11/2023

500-600T/H Limestone/Dolomite Aggregates Production Line

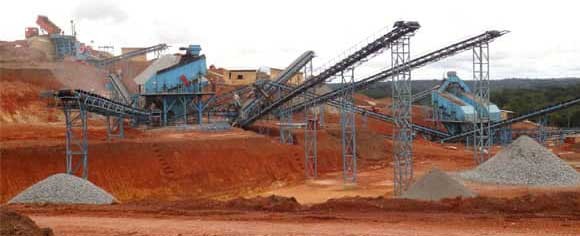

This system is applied for the limestone (dolomite) aggregates production with the production capacity of 500-600t/h. the process flow is vibrating feeder – jaw crusher – impact crusher – vibrating screen – sand washer.

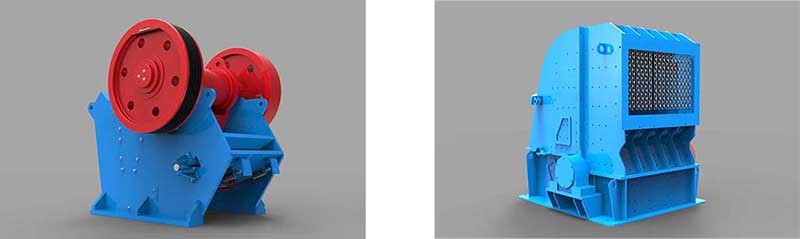

Jaw crusher Impact Crusher

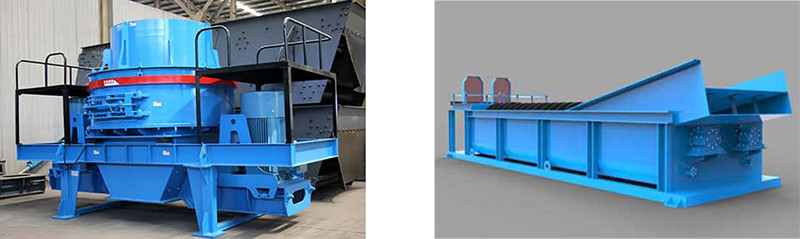

Sand Making Machine Grizzly Feeder

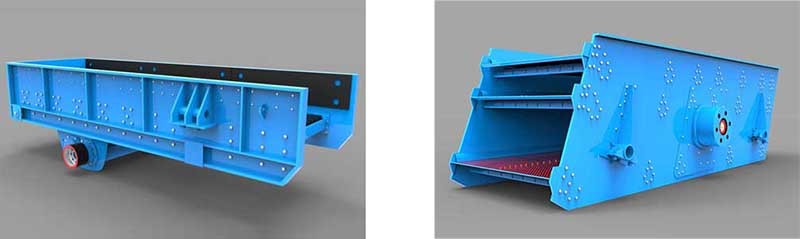

Vibrating Screen Sand Washer

500t/h - Limestone/Dolomite Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	ZSW600x150	pc	1	37	37	260-620	11434
P1	Jaw Crusher	C1412	pc	1	185	185	390-950	55820
P2	Impact Crusher	PFQ1320	pc	2	2X160	640	-350	32700
S1	Vibrating Feeder	3YKR2460	pc	2	45	90	120-880	11046
XL1	Sand Washer	XL762	pc	2	15	30	-75	5225	wet method
C1	Iron Separator		pc	1
G2	Vibrating Feeder	ZG-200	pc	1	2X0.75	1.5	-200
P3	Sand Making Machine	PLS-1200	pc	1	500-630	500-630	300-715	19690
S2	Vibrating Screen	2YK3073	pc	1	55	55	150-900	15476
XL2	Sand Washer	2XL914	pc	1	2X15	30	-200	11300	wet method
C2	Iron Separator		pc	1

600t/h - Limestone/Dolomite Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	ZSW600X180	pc	1	45	45	400-1000	13500
P1	Jaw Crusher	C1412	pc	1	185	185	390-950	55820
P2	Impact Crusher	PFQ1320	pc	2	2X160	640	-350	32700
P3	Impact Crusher	PFQ1315	pc	1	250	250	-280	23570
S1	Vibrating Screen	3YKR2475	pc	2	55	110	150-900	17555
XL1	Sand Washer	XL914	pc	2	15	30	-100	6307	wet method
C1	Iron Separator		pc	1
G2	Vibrating Feeder	ZG-150	pc	2	2×0.75	3	-150
P4	Sand Making Machine	PLS-1000	pc	2	320-500	640-1000	200-585	16500
S2	Vibrating Screen	2YK2460	pc	2	37	74	120-880	9076
XL2	Sand Washer	2XL914	pc	1	2X15	30	-200	11300	wet method
C2	Iron Separator		pc	1

Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.

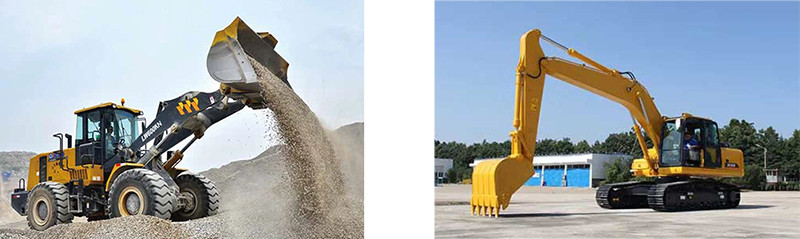

Wheel Loader Crawler Excavator

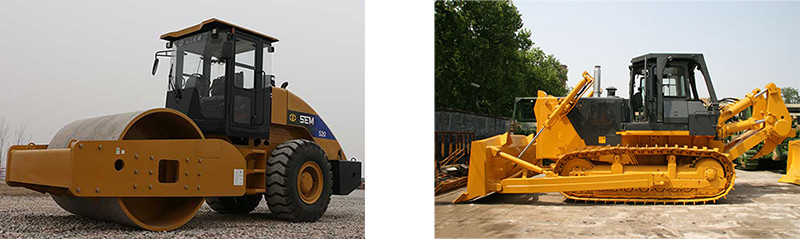

Road Roller Bulldozer

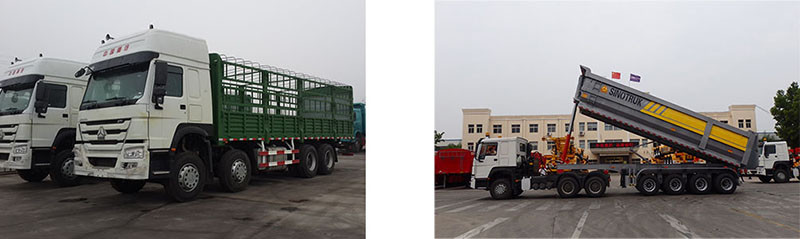

Stake Cargo Truck Tipper Semi Trailer
