60-200T/H Granite/Basalt Aggregates Production Line

Time : 2023-11-24

60-200T/H Granite/Basalt Aggregates Production Line

Features: The whole production line with simple process, small floor space. The equipments have high degree of automation, with high production efficiency, low operating costs. It can meet the requirements of variety of the aggregates used in the field of construction industry.

Crushing Process

This system is applied for the granite (basalt) aggregates production with the production capacity of 60t/h. The process flow is vibrating feeder – jaw crusher – cone crusher – vibrating screen – sand washer.

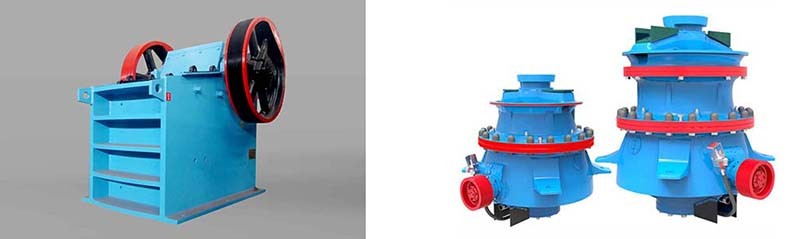

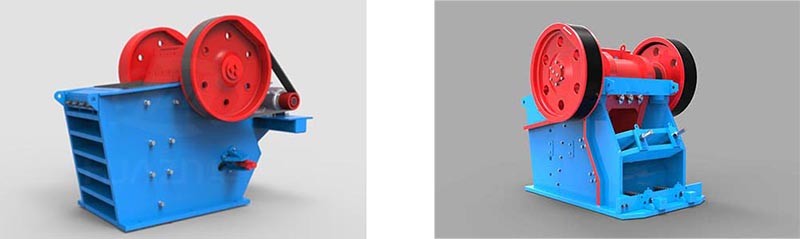

jaw crusher jaw crusher

jaw crusher cone crusher

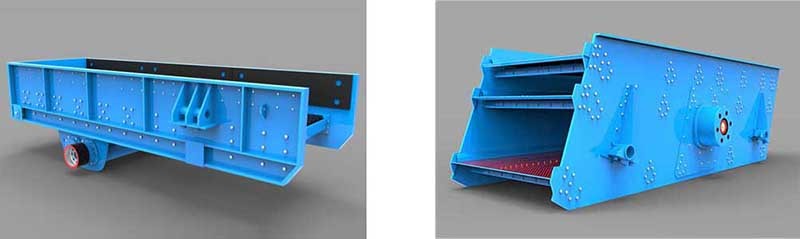

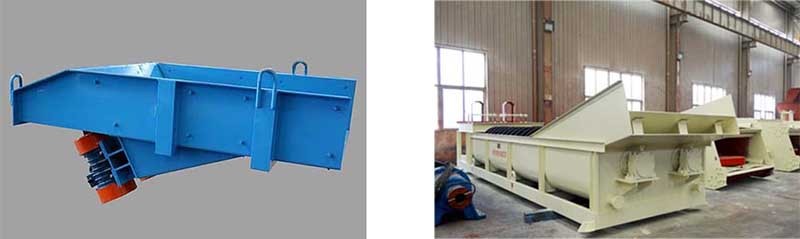

Grizzly Feeder Vibrating Screen

Grizzly Feeder Sand Washer

60t/h - Granite (Basalt) Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	GZD300×95	pc	1	2×3.7	7.4	80-100	3375
P1	Jaw Crusher	DHKS3020	pc	1	55	55	40-86	9330
G2	Vibrating Feeder	ZG200	pc	1	2×0.75	1.5	-200
P2	Cone Crusher	GPY100	pc	1	90	90	45-100	9000
S1	Vibrating Screen	3YA1536	pc	1	15	15	100-350	4870
XL1	Sand Washer	XL610	pc	1	7.5	7.5	-50	3338	wet method
C1	Iron Separator		pc	1
G3	Vibrating Feeder	ZG60	pc	1	2×0.4	0.8	-60
P3	Sand Making Machine	PLS-700	pc	1	55-110	55-110	55-120	7500
S2	Vibrating Screen	2YA1536	pc	1	11	11	100-350	3707
XL2	Sand Washer	XL762	pc	1	15	15	-75	5225	wet method
C2	Iron Separator		pc	1

100t/h - Granite (Basalt) Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	ZSW380×95	pc	1	11	11	80-150	4800
P1	Jaw Crusher	ASD-3625	pc	1	90	90	88-170	15500
G2	Vibrating Feeder	ZG200	pc	1	2×0.75	1.5	-200
P2	Cone Crusher	GPY100S	pc	1	90	90	115-210	10300
S1	Vibrating Screen	3YK1545	pc	1	30	30	80-450	5495
XL1	Sand Washer	XL610	pc	1	7.5	7.5	-50	3338	wet method
C1	Iron Separator		pc	1
G3	Vibrating Feeder	ZG60	pc	1	2×0.4	0.8	-60
P3	Sand Making Machine	PLS-700	pc	1	55-110	55-110	55-120	7500
S2	Vibrating Screen	2YA1536	pc	1	11	11	100-350	3707
XL2	Sand Washer	XL762	pc	1	15	15	-75	5225	wet method
C2	Iron Separator		pc	1

200t/h - Granite (Basalt) Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	ZSW490×110	pc	1	18.5	18.5	120-280	6265
P1	Jaw Crusher	ASJE-4230	pc	1	110	110	195-420	29595
G2	Vibrating Feeder	ZG200	pc	2	2×0.75	3	-200
G3	Vibrating Feeder	ZG200	pc	1	2×0.75	1.5	-200
P2	Cone Crusher	GPY200S	pc	1	160	160	165-275	16000
P3	Cone Crusher	HPY200	pc	1	160	160	55-245	12500
S1	Vibrating Screen	3YKR2160	pc	1	45	45	115-820	10652
XL1	Sand Washer	XL762	pc	1	15	15	-75	5225	wet method
C1	Iron Separator		pc	1
G4	Vibrating Feeder	ZG100	pc	1	2×0.75	1.5	-100
P4	Sand Making Machine	PLS-850	pc	1	150-320	150-320	75-345	11520
S2	Vibrating Screen	2YK1860	pc	1	30	30	100-650	8270
XL2	Sand Washer	XL914	pc	1	15	15	-100	6370	wet method
C2	Iron Separator		pc	1

Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.
