800-1000T/H Granite/Basalt Aggregates Production Line

Time : 27/11/2023

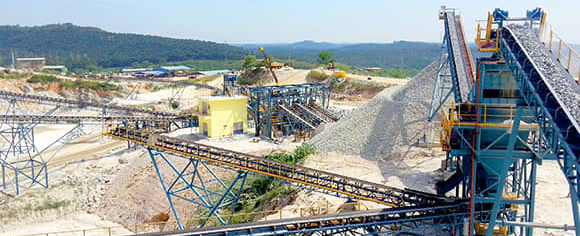

800-1000T/H Granite/Basalt Aggregates Production Line

Features: The whole production line with simple process, small floor space. The equipments have high degree of automation, with high production efficiency and output. The finished particles have good shape with proper grade. It can meet the requirements of variety of the aggregates used in the field of construction industry.

Crushing Process

This system is applied for the granite (basalt) aggregates production with the production capacity of 800t/h. the process flow is vibrating feeder – jaw crusher – cone crusher – vibrating screen – sand washer.

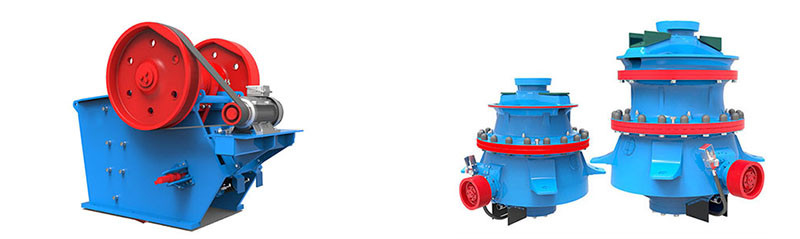

JC series jaw crusher Cone crusher

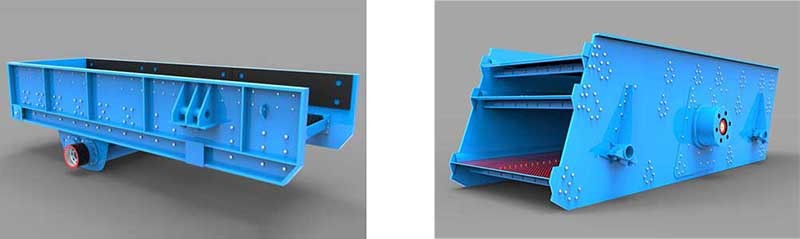

Grizzly Feeder Vibrating Screen

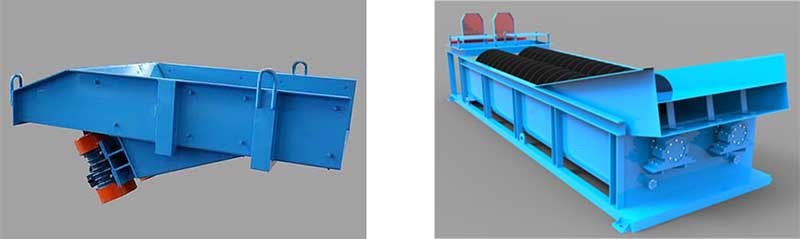

Vibrating Screen Sand Washer

800t/h - Granite (Basalt) Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	ZSW600x180	pc	1	45	45	400-1000	13500
P1	Jaw Crusher	JC140	pc	1	200	200	470-985
G2	Vibrating Feeder	ZG400	pc	3	2x2.0	12	-400
G3	Vibrating Feeder	ZG400	pc	2	2x2.0	8	-400
P2	Cone Crusher	GPY500S	pc	1	315	315	295-1200	45000
P3	Cone Crusher	HPY500	pc	2	400	800	135-770	42500
S1	Vibrating Screen	3YK3073	pc	2	2x37	148	150-900	22500
XL1	Sand Washer	XL914	pc	2	15	30	-100	6370	wet method
C1	Iron Separator		pc	1
G4	Vibrating Feeder	ZG200	pc	2	2×0.75	3	-200
P4	Sand Making Machine	PLS-1200	pc	2	500-630	1000-1260	300-715	19690
S2	Vibrating Screen	2YK2475	pc	2	45	90	150-900	13924
XL2	Sand Washer	XL1118	pc	2	22	44	-175	12703	wet method
C2	Iron Separator		pc	1

1000t/h - Granite (Basalt) Production Configuration Table

No.	Equipment	Model	Unit	Quantity	Power(kw)	Total Power(kw)	Output(t/h)	Weight(kg)	Remark
G1	Grizzly Feeder	ZSW600x210	pc	1	45	45	550-1250	14791
P1	Jaw Crusher	JC160	pc	1	250	250	640-1200
G2	Vibrating Feeder	ZG400	pc	3	2X2.0	12	-400
G3	Vibrating Feeder	ZG500	pc	3	2×2.5	15	-500
P2	Cone Crusher	GPY500S	pc	1	315	315	295-1200	45000
P3	Cone Crusher	HPY500	pc	3	400	1200	135-770	42500
S1	Vibrating Screen	3YK2460	pc	4	45	180	120-880	11046
XL1	Sand Washer	XL9114	pc	2	15	30	-100	6370	wet method
C1	Iron Separator		pc	1
G4	Vibrating Feeder	ZG200	pc	2	2×0.75	3	-200
P4	Sand Making Machine	PLS-1200	pc	2	500-630	1000-1260	300-715	19690
S2	Vibrating Screen	2YK3073	pc	2	55	110	150-900	15476
XL2	Sand Washer	2XL914	pc	2	2X15	60	-200	11300	wet method
C2	Iron Separator		pc	1

Notes: the equipment in the sheet is used for reference, the final equipment configuration should be selected due to material particle size, product particle size and grade, system capacity, working conditions and topographical features.

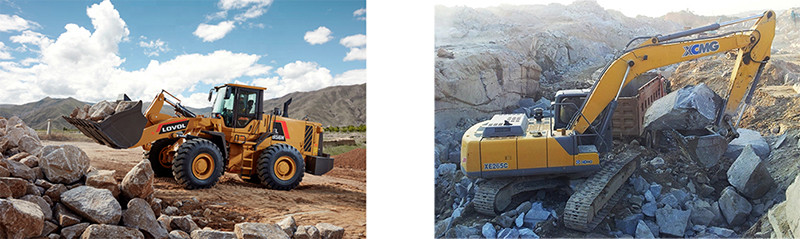

Wheel Loader Crawler Excavator

Diesel Generator Set Automatic Crawler Mounted DTH Drilling Rig

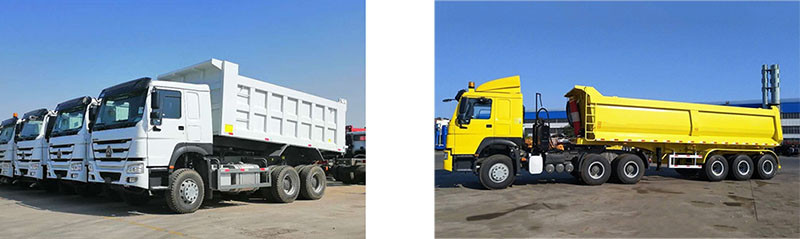

Dump Truck Tipper Semi Trailer

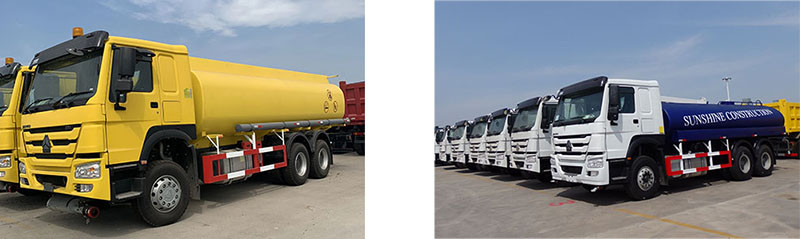

Fuel Tank Truck Water Tank Truck
