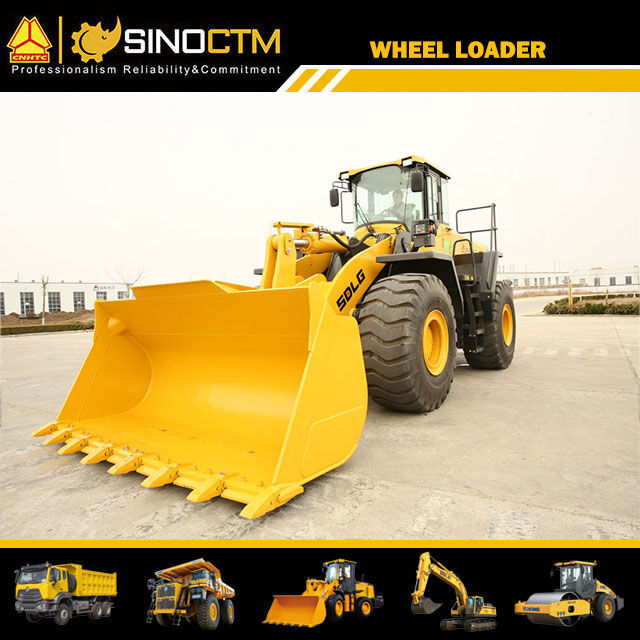

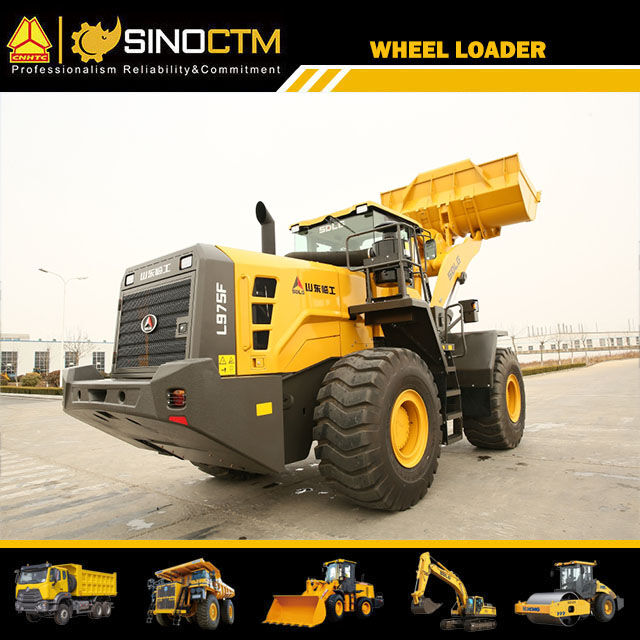

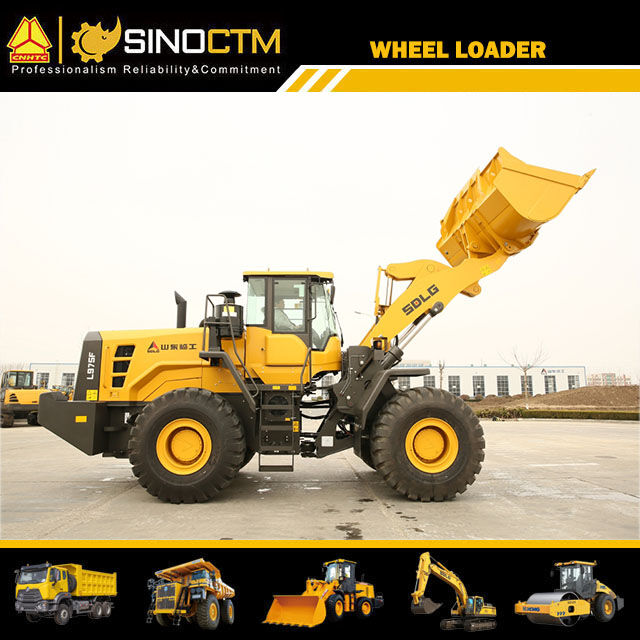

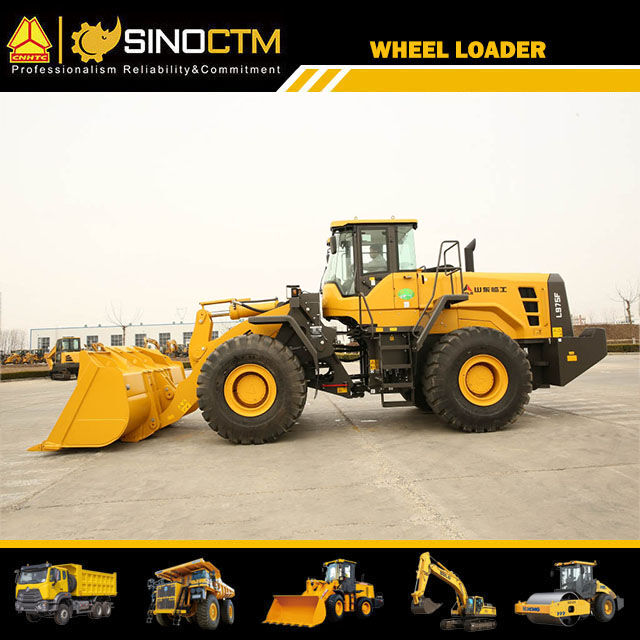

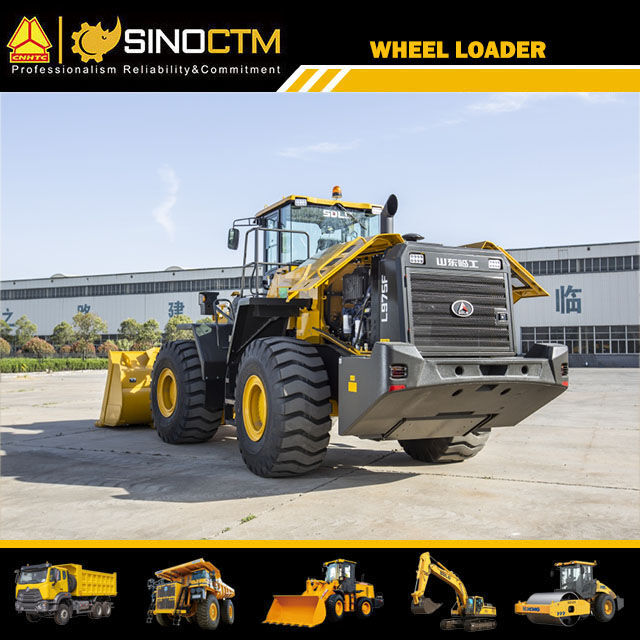

SDLG L975F Wheel Loader
SDLG L975F Wheel Loader
Standard bucket: 4.2m³
Rated operating load :7000kg
Operating weight:24900kg
Engine Model: WEICHAI WP10G270E341
Gross Power:199/2200 kW / rpm
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

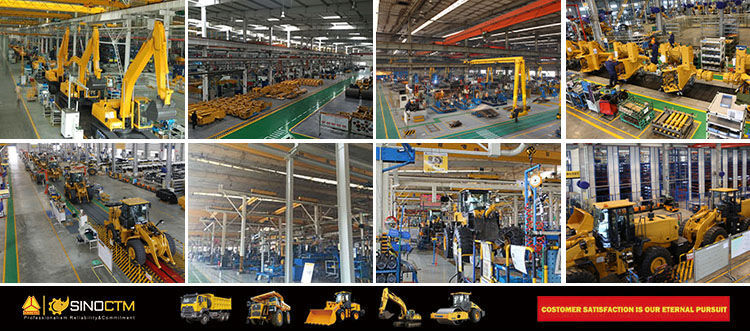

新组合 1.jpg

SDLG L975F WHEEL LOADER SPECIFICATIONS
L975F is a luxury and comfortable loader for loading and unloading heavy-load materials, with large breakout force, comfortable operation condition, high operating efficiency and is widely used in building site, mining, wharf and etc.
OVERALL DIMENSION
Dimension9250x3200x3635mmWheelbase3550mm
Min ground clearance506mmMax dumping height3200mm
Dumping distance1315mmDumping angle-45°
Wheel tread2350mmSteering angle38°
Horizontal crossing radius7450mmMin turning radius6330mm
OVERALL PARAMETER
Bucket capacity4.2m3Rated load7000kg
Operating weight24900kgMax tractive force≥226kN
Max breakout force≥216kNTipping load≥145kN
ENGINE
ModelWEICHAI WP10G270E341TypeInline,water cooled,dry cylinder liner,direct injection
Rated power/speed199kw/2200r/minEngine displacement9726ml
Cylinder bore/stroke126/130mmMax torque1300N.m
Emission standardEuro2Min fuel consume ratio≤2150g/kW.h
TRANSMISSION SYSTEM
Torque converterSingle stage four element double turbine hydraulic torque converterTransmission typePlanetary power shift
Gearsforward 4 reverse 4Speed at forward gear/reverse gear I0-7.4km/h/0-7.4km/h
Speed at forward gear/reverse gear II0-13.7km/h/0-13.7km/hSpeed at forward gear/reverse gear III0-27.3km/h/0-27.3km/h
Speed at forward gear/reverse gear IV0-40km/h/0-40km/h

HYDRAULIC SYSTEM OF WORKING DEVICE
TypeHydraulic pilot controlTotal time≤10.9s
TYRES
Front tyres23.5-25-18PR-L3Rear tyres23.5-25-16PR-L-3
BRAKE SYSTEM
Service brake typeAir over hydraulic disc typeParking brake typeElectric pneumatic internal expansion shoe type
STEERING SYSTEM
TypeLoad sensing full hydraulic articulated steeringSystem pressure21Mpa
FILL CAPACITY
Fuel380LHydraulic oil230L
Engine20LTransmission55L
Drive axle50L+54L

PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

新组合 2.jpg

L975F is a luxury and comfortable loader for loading and unloading heavy-load materials, with large breakout force, comfortable operation condition, high operating efficiency and is widely used in building site, mining, wharf and etc.

1. Low-speed and large-torque engine meeting the requirement of China III emission standard is provided, with strong power, low noise, reliable performance, horizontally-mounted air filter and is convenient for repair and maintenance.

2. specially-imported HTE220 axis-fixed electric-liquid shift transmission case is used, with four front gear positions and four rear gear positions and is flexible and high efficient; LG reinforced drive axle is configured. Full hydraulic travel braking system is used, with stable and reliable braking property and is convenient for repair and maintenance


新组合 3.jpg
