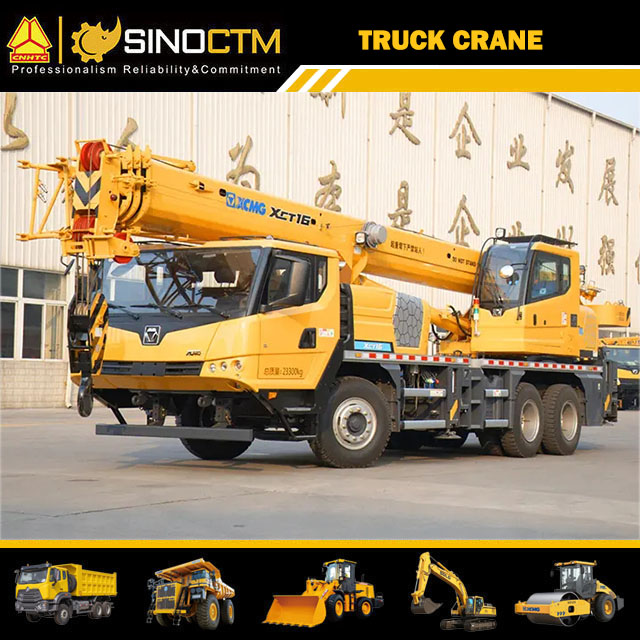

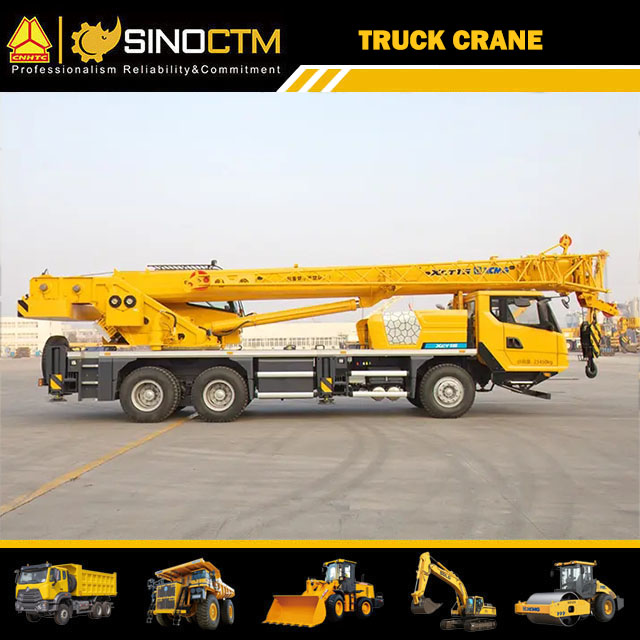

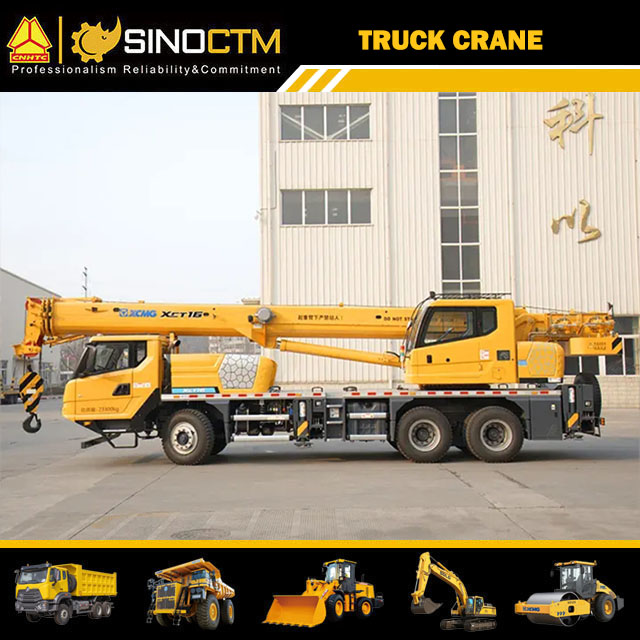

XCMG XCT16 Truck Crane 16T
XCMG XCT16 Truck Crane
Max. total rated lifting capacity:16000kg
Engine:SHANGCHAI SC7H230Q3
Rated Power:170/2200kw/r/min
Max. lifting torque:730KN.m
Max. permissible weigh:23000kg
Overall dimensions:11960×2500×3360mm
Inquiry Now →

Product Description

徐工起重机械组合 2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg

ItemUnitParameters
Dimension
Dimension(L*W*H)mm11960×2500×3360
Wheel Basemm4425+1350
Track(Front/Rear)mm2027/1834
Front/Rear Overhangmm2414/2291
Front/ Rear Extensionmm1115/365
Weight
Max. permissible weightkg23300
 Axle Load1st Axlekg6500
2nd Axlekg8400
3rd Axlekg8400
Power
Engine Model/SC7H230Q3
Engine rated powerkW/(r/min)170/2200
Max. net power/rpmkW/(r/min)166/2200
Engine rated torqueN.m/(r/min)900/1400
Travel
Max. travel speedkm/h85
Min. travel speedkm/h2~3
Min. turning diameterm≤20
Min. ground clearancemm261
Approach angle°25
Departure angle°14
Braking distance (at 30 km/h )m≤10
Max. grade ability%≥48
Fuel consumption for 100kmL28
Exterior noise leveldB(A)≤84
Noise level at seated positiondB(A)≤90
Main Performance
Max. total rated lifting capacityT16
Min. rated working radiusm3
Turning radius at turntable tailCounterweightmm3180
Auxiliary winchmm/
 Max. load momentBase boomKN.m730
Fully-extended boomKN.m475
Fully-extended boom + JibKN.m163
Outrigger spanLongitudinalm5.1
Lateralm5.8
 Hoist HeightBase boomm10.5
Fully-extended boomm32.5
Fully-extended boom + Jibm40.6
 Boom lengthBase boomm10
Fully-extended boomm32
Fully-extended boom + Jibm40.15
Jib offset angle°0、15、30
Working Speed
Boom raising times≤35
Boom fully extended times≤50
Max. slewing speedr/min≥3
Outrigger extending and retracting timeOutrigger beamRetracting  s≤20
Extendings≤25
Outrigger jackRetracting  s≤20
Extendings≤25
Hoisting speed (single line, 4th layer, no load)Main winchm/min≥130
Auxiliary winchm/min≥130
Noise
Exterior noise leveldB(A)≤120
Noise level at seated positiondB(A)≤90

新组合 2.jpg

XCT16 Truck Crane is an efficient, economic and applicable brand new product designed on basis of XCMG G-generation R&D platform. With 3-axle self-made special chassis, 4-section dodecagonal cross section of boom,built-in double independent winch and power system with low speed and large torque, this crane has industry-leading lifting height, lifting capacity and working efficiency.

XCT16 Truck Crane is widely suitable for construction site, urban renewal, traffic transportation, port, bridge, oil field, mine fieldand other complex working environment. It has industry-leading performance.

徐工起重机械组合 4.jpg

Other products:

1. Dump Truck / Tipper Truck

2. Hohan tractor Truck/ prime mover truck

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement trailer

10. High-altitude operation truck

11. Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )

徐工起重机械组合 3.jpg
