Description

徐工矿山机械组合(23) 1.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg

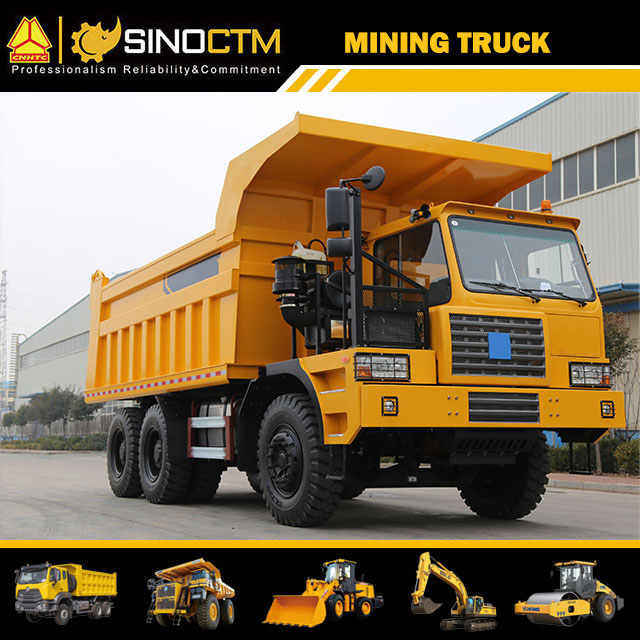

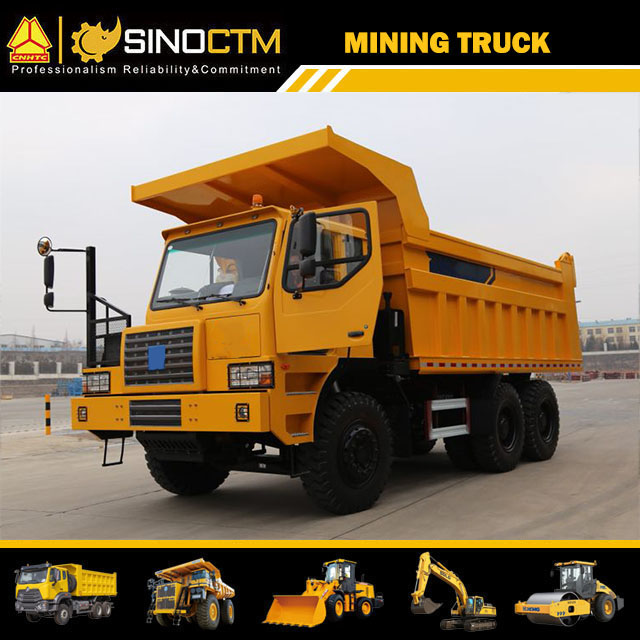

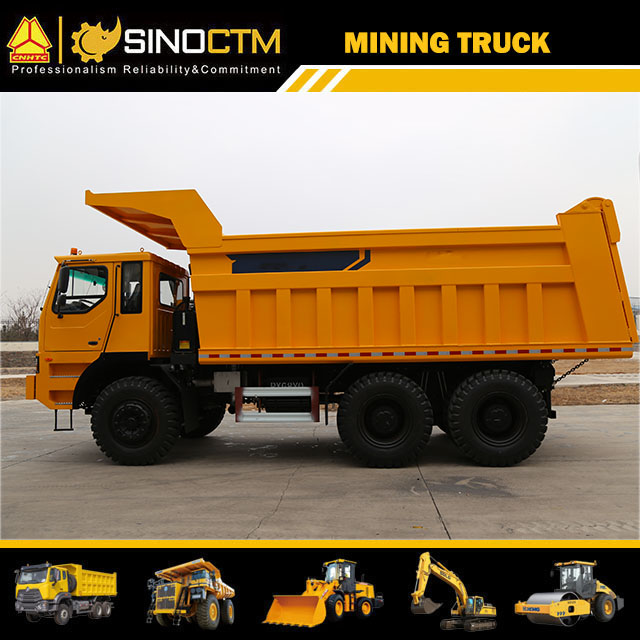

PX65YQ MINING DUMP TRUCK SPECIFICATION
Performance Parameters
Curb Weight25000kg
Rated load40000kg
Rated total weight65000kg
Overall Dimension8850*3200*4050mm
Inner dimension of body5800*3000*1600mm
Max speed56.8km/h
Min ground clearance365mm
Min turning radius≤10m
Max gradeability40%
Approach angle/Departure angle35°/42°
Axle base3650+1560mm
Wheel span (front /rear)Front 2368mm, Rear 2252mm
Oil tank Capacity400L
Body Capacity28m³
Main Parts
Engine
Engine ModelWD12G380E311
Rated Power/Speed280kw/2100rpm
Max.Torque/Speed1650/1200-1600
Drivetrain
Transmission7DS200K,7 forward and 1 reverse
Front AxlePX 13T steel front axle
Rear AxlePX 25T middle/rear axle
Frame
FrameWelded Semi-rigid cube type frame 450*130
Steering
Type ZJ120 steering
Tires
Standard Tire14.00-25.00-36PR
Cab
TypeReversible wide-body offset cab
Suspension
Front/RearWhole welded equalizing suspension, reinforced removable equalizing shaft
Body
DescriptionMn plate ,Bottom margin 16mm side board 12mm, front hoisting, HYVA oil cylinder
Other
DescriptionAir filter level 3, exhaust braking, heater for base plate

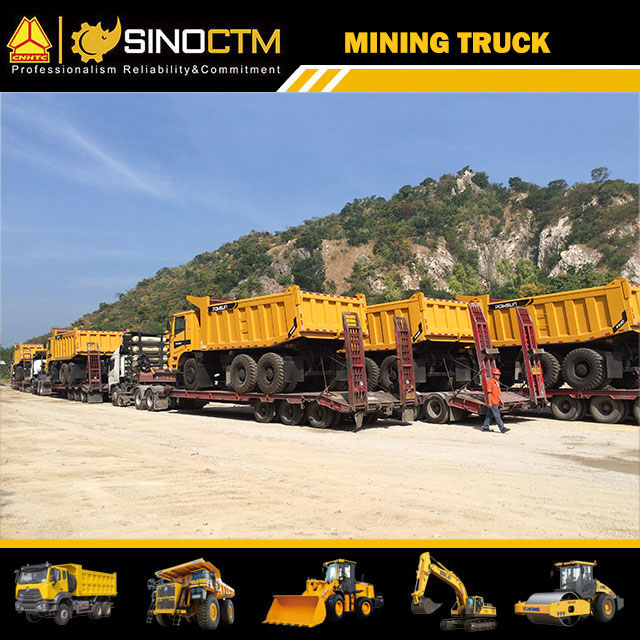

PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

新组合 2.jpg

It's rigid frame,which is the most strong wide-body dump truck frame in China.Is similar to the classic mining truck,and the longitudinal beam of it,whose section size reaches 450mm x 130mm,uses box structure welded by intensive steel plate welding.



It customized the general power system based on the characteristics of the mining area,matching domestic well-known high-horsepower engines and transmissions designed for mining area,which makes it more economical and reliable.



It adds the lateral connecting rod of the axle,effectively restricting to the move of the axle,and then greatly prolongs the life span of suspension.



It can be fitted with retarder,which can make braking safer,and reduce the operational cost.


Other products:

1. Dump Truck / Tipper Truck

2. Hohan tractor Truck/ prime mover truck

3. Truck with crane / Truck mounted crane

4. Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement trailer

10. High-altitude operation truck

11. Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )

新组合 3.jpg
