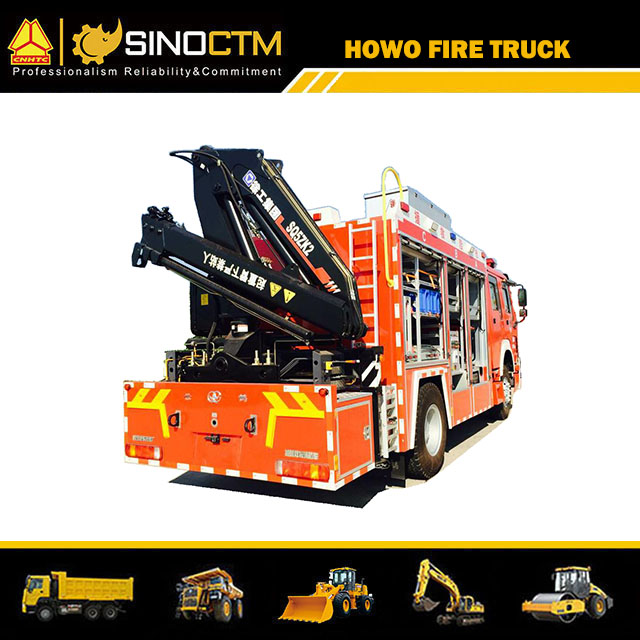

SINOTRUK HOWO 4x2 RESCUE FIRE TRUCK
HOWO Emergency Rescue Fire Truck
Model: ZZ1167N4617B1
Cab:HW76 Lengthen cab,with one sleep,with A/C
Engine:WP10.300E22; 300hp; Euro II
Transmission: HW19710,10 forward and 2 reverse
Steering: BOSCH Left hand driving
Axles: Front:7000kg & Rear:16000
Tire: 295/80R22.5 tubeless tyre,with 1 Spare tire.
With Generator,with Lifting lamp
With Traction winch;with Crane
Inquiry Now →

Product Description

新重汽 32.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新重汽 34.jpg


SINOTRUK HOWO 4x2 RESCUE FIRE TRUCK SPECIFICATIONS
vehicle main parameters
Overall Dimension8650×2500×3440
GVW16000kg
Engine ModelWP10.300E22
Engine Power221kW
Wheelbase4600mm
Driving Type4×2
Max.speed102km/h
Emission Standard9726ml
Passengers2+4
Approach angle≥16°
Departure angle≥23°
Generator10KW
Lifting lamp4×1000W,Height≥7.5M
Traction winch5443kgf
Crane5000kg
Cabin
Structureflat、4 doors、double row of seats
Passenger No    2+4
Back row of chairs4 sets of Air respirators at the back of the back row seats
Drive typeRight hand drive
 EquipmentBesides original equipments on chassis,add:100W siren、long line fire lights、marker lamp、outline marker lamp、PTO and so on
Frame body
MaterialThe outer frame of the body are all high quality Q235A, the inner frame use high strength aluminum alloy, the bottom panel adopt aluminum panels with anodic oxidation treatment.
The doorsThe doors are aluminum alloy structure with locks which are good sealing and dustproof.
Lifting Lamp
Lifting systemBSD-Z7041000
ManufacturerBOCAN
Power4×1000W
Lifting height7.6m(From top to ground)
Rotation AngleHorizontal 360°,Vertical 330°
Lifting typePneumatic
Control Cabinet Voltage380/220V
OtherWith control cabinet

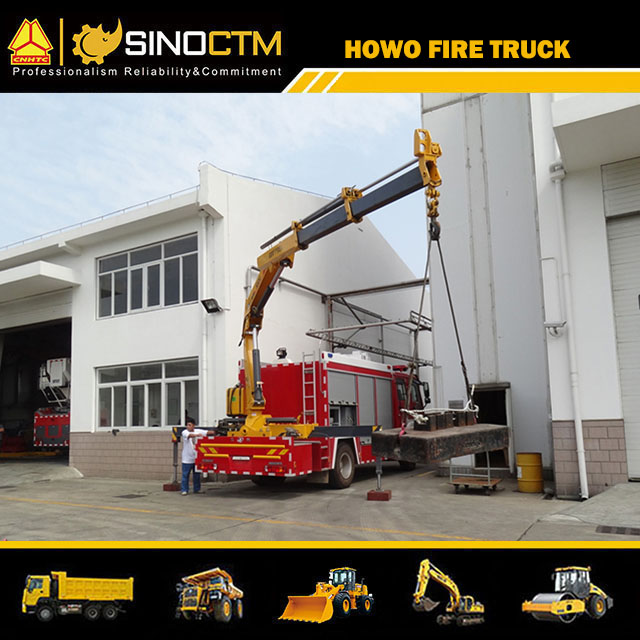

Hydraulic Crane
ModelSQ5ZK2 (XCMG)
Max Lifting Weight5000㎏
Max.Lifting Torque10.5T.M
Max Length of hydraulic arm8m
Max Working Height9m
Rotation Angle370°
Installation typeRear-mounted
Rotary range360°
Traction Winch
ModelN16800XF-24V
ManufacturerUSA CHAMPION
Max traction force16800lbs(7560kgs)
Driving typePower-driven
Diameter of wire rope13mm
Length of wire rope48m
Generator
ModelSHT11500
Rated Voltage220V/380V
Rated Power10kW
EquippedMovable coil,earthing system
Starting ModeElectric start and manual start
Electrical Equipments
Additional electricalIndependent circuit
Auxiliary lightingHeadlamps are installed in the tools compartment and storage compartment. operating dashboard is equipped with lighting switch, indicator light.etc. It is convenient for observation.
Side flashing lightA set of red and blue flashing lights are installed on both sides of the vehicle body.
The warning device of the cabinLong red light 1 piece, which is installed on the top of the cabin;Electronic alarm 1 piece, which is installed in the cabin;The control box is installed below in front of the driver
The accessories equipment list
Portable dry powder fire extinguishers1
Bucket2
Triangle Warning board2
sole timber for crane2
Spare light tube2
Original chassis tools and accessories1
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新重汽 33.jpg

Fire fighting truck can be divided into many types:


a. According to vehicle size ,there are mini fire fighting truck ,light fire fighting truck ,medium fire fighting truck ,heavy-duty fire fighting truck;


b. According to chassis drive type ,there are 4x2 fire fighitng truck ,6x4 fire fighting truck ,8x4 fire fighitng truck and off-road type 4x4,6x6 fire truck;


c. According to chassis brand,ther are ISUZU ,Dongfeng,FOTON,FAW ,SINOTRUCK ,etc.


d. According to fire agent,there are water tank fire fighting truck ,water/foam fire fighting truck ,dry powder fire fighting truck

新重汽 38.jpg
