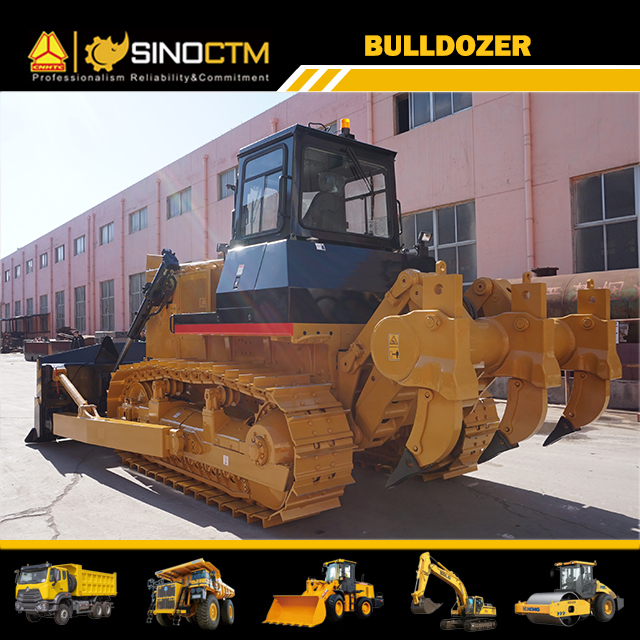

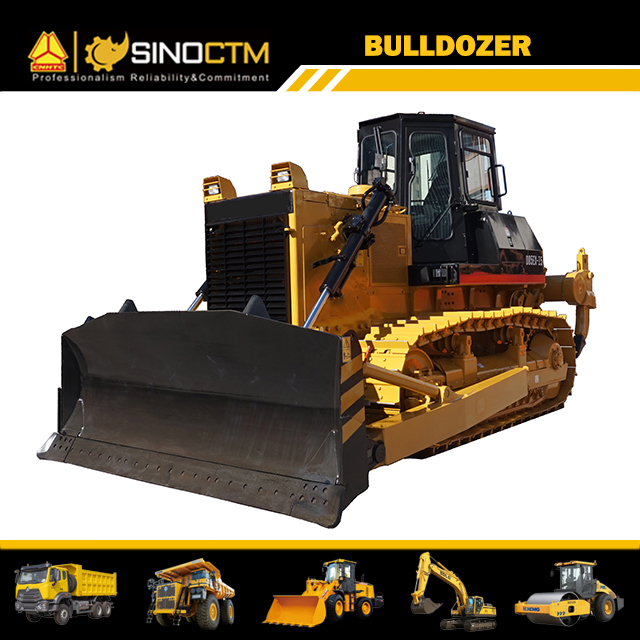

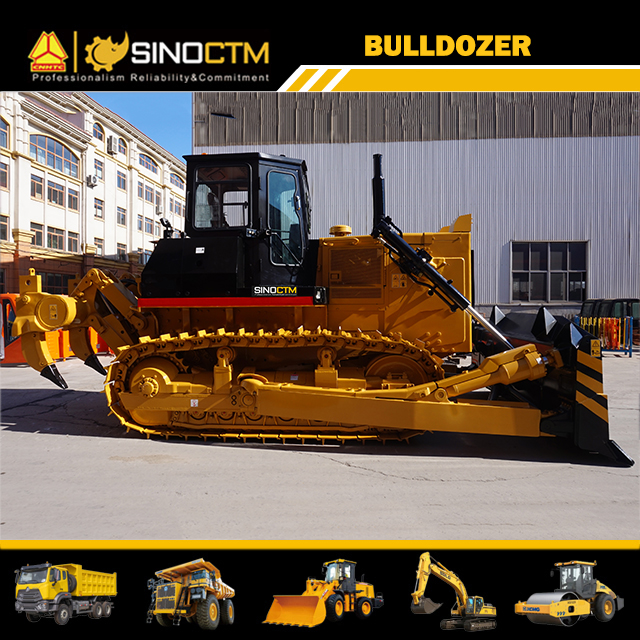

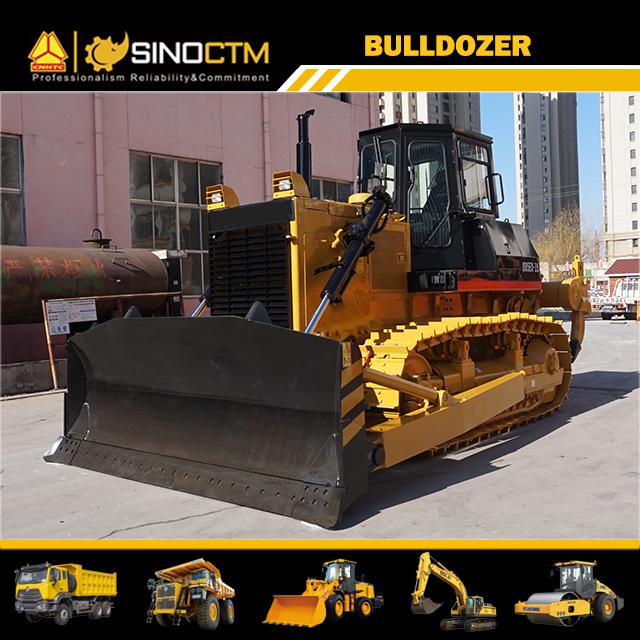

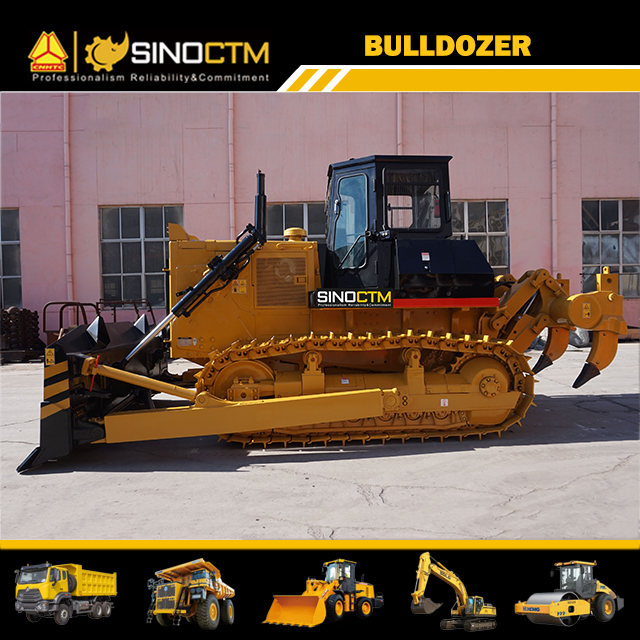

D85EX-15 BULLDOZER
D85EX-15 BULLDOZER
Operating weight: 24500kg
Engine model: CUMMINS NT855-C280S10
Rated power:180kw (245 HP) /1800 rpm
Blade width:3725mm
Blade height:1315mm
Scraper capacity:7.5m³
Overall dimensions:6805x3725x3395mm
( with ripper )
Inquiry Now →

Product Description

企业横幅 6-2.jpg

SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg

D85EX-15 BULLDOZER SPECIFICATIONS
WEIGHT
Operating weight24500 kg
With ripper attachment27250 kg
ENGINE
ModelCUMMINS NT855-C280S10 4-stroke cycle, turbocharged,intercooled, in-line
Rated power180 kW (245 HP) @ 1800 rpm
Number of cylinders6—Ø139.7 mm x 152.4 mm (bore x stroke)
Piston displacement14.01L
Min. Fuel consumption214g / kW.h
Maximum torque1030 N.m @ 1250 rpm
     POWER TRANSMISSION SYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionPower-shift, planetary gear, multiple-disc clutch, hydraulically forced lubrication driven by gear
Central drive shaftSpiral bevel gear, single-stage speed reduction, splash lubrication
Final drive2-stage spur gear speed reduction,splash lubrication
         TRAVEL SPEED
Gear1st2nd3rd
Forward0-3.8km/h0-6.8km/h0-11.6km/h
Reverse0-4.6km/h0-8.1km/h0-13.5km/h
UNDERCARRIAGE SYSTEM
TypeOscillation-type with equalizer bar and forward mounted pivot shafts
Carrier rollers2 each side
Track rollers6 each side
Track typesingle-grouser
Width of track shoes560mm
Pitch216mm
HYDRAULIC SYSTEM
Maximum pressure14Mpa
Pump typeGear pump
Discharge262L/min
Bore of working cylinder * no120mm * 2
STEERING SYSTEM
Steering clutchWet type, multiple-disc, spring loaded,hydraulically separated, hand-operated hydraulic controls
Steering brakeWet type, band brake, foot pedal-operated(with hydraulic booster and clutch linkage)
WORKING EQUIPMENT AND ATTACHMENT
Straight-tilt dozerHydraulically-actuated with servo valve
Blade supportBrace type with tilt cylinder on the right side
Width3725mm
Height1315mm
Blade capacity7.5 m³
Max. lift above ground1210 mm
Max. drop below ground540 mm
Max. tilt adjustment735 mm
Blade weight3680 kg
COOLANT AND LUBRICANT CAPACITY
Coolant  79 L
Fuel tank450 L
Engine oil45 L
Hydraulic oil tank110 L
Bevel gear case120 L
Final drive case41 L (each side)
Ripper
For multi-shank ripper
Max. digging depth665 mm
Max. lift above ground555 mm
No. of shank(s)3
For single-shank ripper
Max. digging depth665 mm
Max. lift above ground555 mm
No. of shank(s)1
DIMENSIONS
Dimension6805x3725x3395mm ( with ripper )
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

新组合 2.jpg

Our range of bulldozers are constructed with the finest craftsmanship to withstand the most extreme climatic conditions that Mother Nature has to offer. Through years of research and data analysis, We has perfected the finer details of its bulldozers by achieving excellent ground holding capability and superior mobility through rough terrains.



Besides incorporating the best of components such as engines, transmissions, undercarriages and hydraulic parts available in today’s marketplace, We also adopts a minimalistic approach during the design process of its bulldozers. By keeping its configuration simple, it has enabled users regardless of their skill levels to operate the bulldozer effectively.



What differentiates a great bulldozer from a regular one is its structural frame. We prides itself on using a highly reinforced hull frame that is welded together by robots as its core. The frame is then tested by a five-axis measuring device to ensure its quality and fit. This extensive process ensures that all other components fits onto the frame perfectly resulting in a flawless machine.


新组合 3.jpg
