SINOCTM is located in Ji′Nan city, Shandong province, SINOCTM aims to provide the project solutions with best cost performance to customers from China and abroad. Our main business are construction solutions consultancy, equipments supply, technical instruction, parts supply, service & training, logistic support and etc, providing the steward type service.



We cooperate with SINOTRUK, FOTON, SDLG, XCMG, Liugong, Shantui, Sany, Zoomlion, Hongda and other premium brands to provide tailored project solutions to your specific needs. We can help you to avoid long-time communication with different suppliers, which will save you time and cost. As to after market, with many years′ experience in the industry and long-term partnership with the suppliers, we do provide timely after market with lower cost and higher availability.

新组合 1.jpg

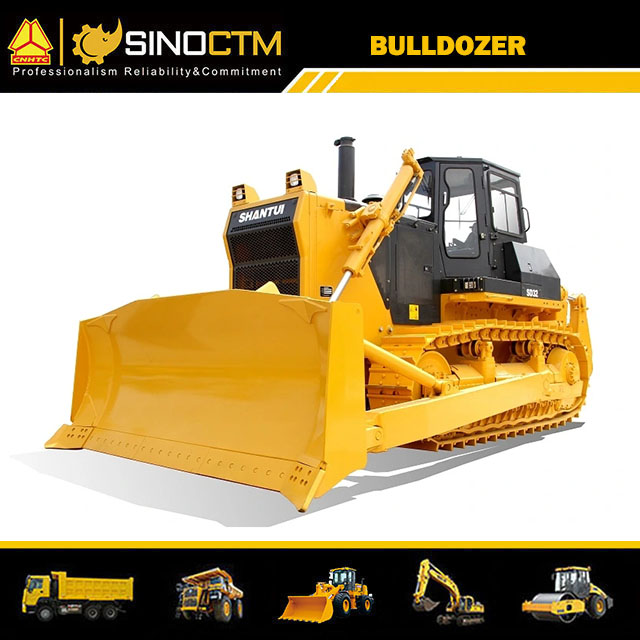

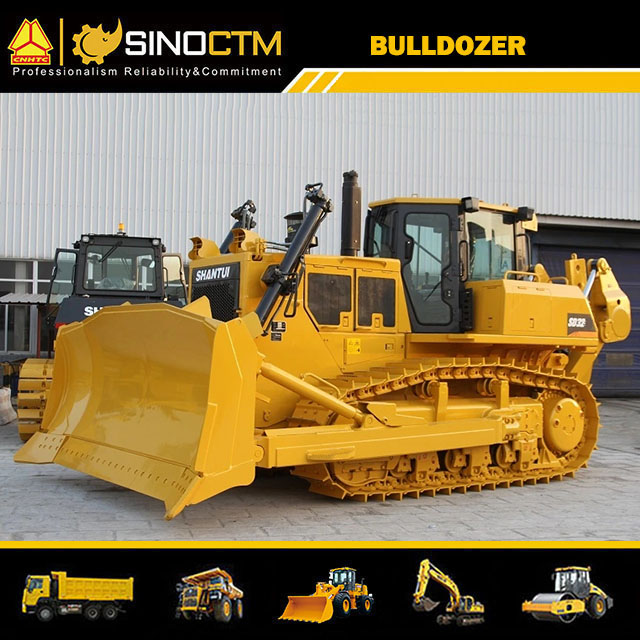

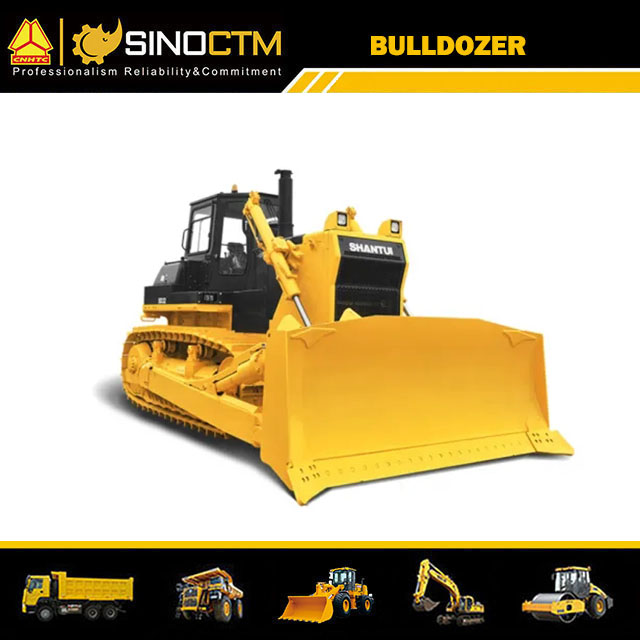

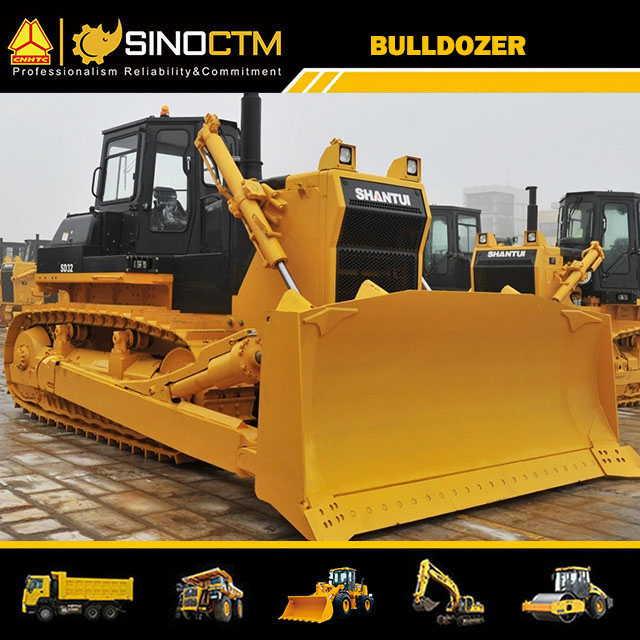

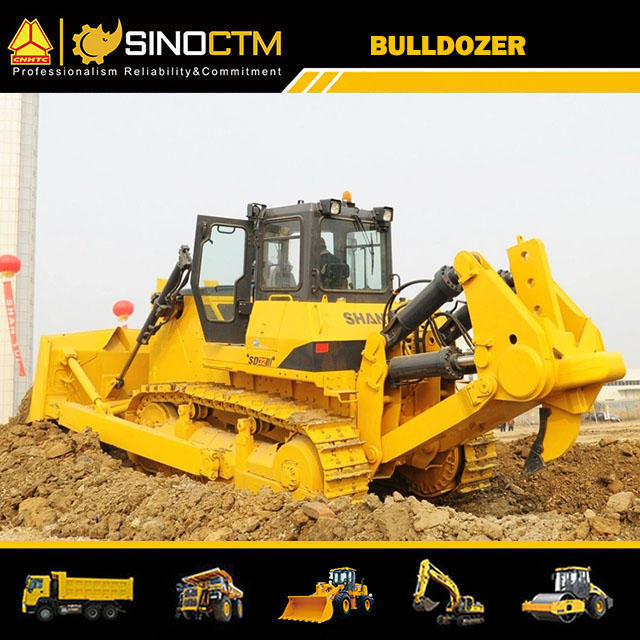

SHANTUI SD32 BULLDOZER SPECIFICATIONS
ENGINE
ModelCummins NTA855-C360S10; In-line, water-cooled; 4-cycle, overhead valve direct injection, turbocharged diesel
Rated power235kw / 320hp
Number of cylinders6—139.7 x 152.4 (mm x stroke)
Piston displacement14.010L
Min. Fuel consumption217 g/kW·h
Maximum torque1440 N·m@1400rpm
POWER TRANSMISSION SYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionPlanetary gear, multi-disc clutch, hydraulically connected, forced lubrication
Main driveSpiral bevel gear, splash lubrication, single-stage speed reduction
Steering clutchWet, multi-disc, spring loaded, hydraulically separated, hydraulic control
Steering brakeWet, floating, direct on-off hydraulic inter-linking operation
Final drive2-stage speed reduction of spur gear, splash lubrication
TRAVEL SPEED
Gear1st2nd3rd
Forward0-3.6km/h0-6.6km/h0-11.5km/h
Reverse0-4.4km/h0-7.8km/h0-13.5km/h
UNDERCARRIAGE SYSTEM
TypeSwing type of sprayed beam, suspended structure of equalizer bar
Carrier rollers2 each side
Track rollers7 each side
Track type41 each side
Width of track shoes560mm
Pitch228.6mm
HYDRAULIC SYSTEM
Maximum pressure14Mpa
Pump typeGear pump
Discharge355L/min
Bore of working cylinder * no140mm * 2
BLADE
Blade typeStraight tilt ( standard )AngleSemi-U blade
Dozing capacity10 m36 m311.7 m3
Efficiency( theoretical value 40m )580m3/h350m3/h690m3/h
Blade width4130mm5000mm4130mm
Blade height1590 mm1140 mm1710 mm
Maximum drop below ground560mm630mm560mm
Maximum tilt adjustment>100 mm->500 mm>1000 mm
RIPPER ( OPTIONAL )
Max digging depth of 3 shank ripper542mmMaximum digging depth of single ripper1250 mm
Max lift above ground883mmMaximum lift above ground965 mm
Weight of 3 shank ripper3802kgWeight of single ripper3252 kg
DIMENSIONS
Dimension8650x4130x3725( with ripper )
PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice


新组合 2.jpg

The SD32 provides a showcase for Shantui’s prowess with high-efficiency push factors. These medium-sized, but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32s are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.

新推土机组合 1.jpg
